Visual Explainer

VPS Architecture and Workflow

A compact map of how this VPS is organized today: where work starts, how public traffic is routed, where apps live, how operational dashboards fit in, and which rules keep the environment predictable.

System Overview

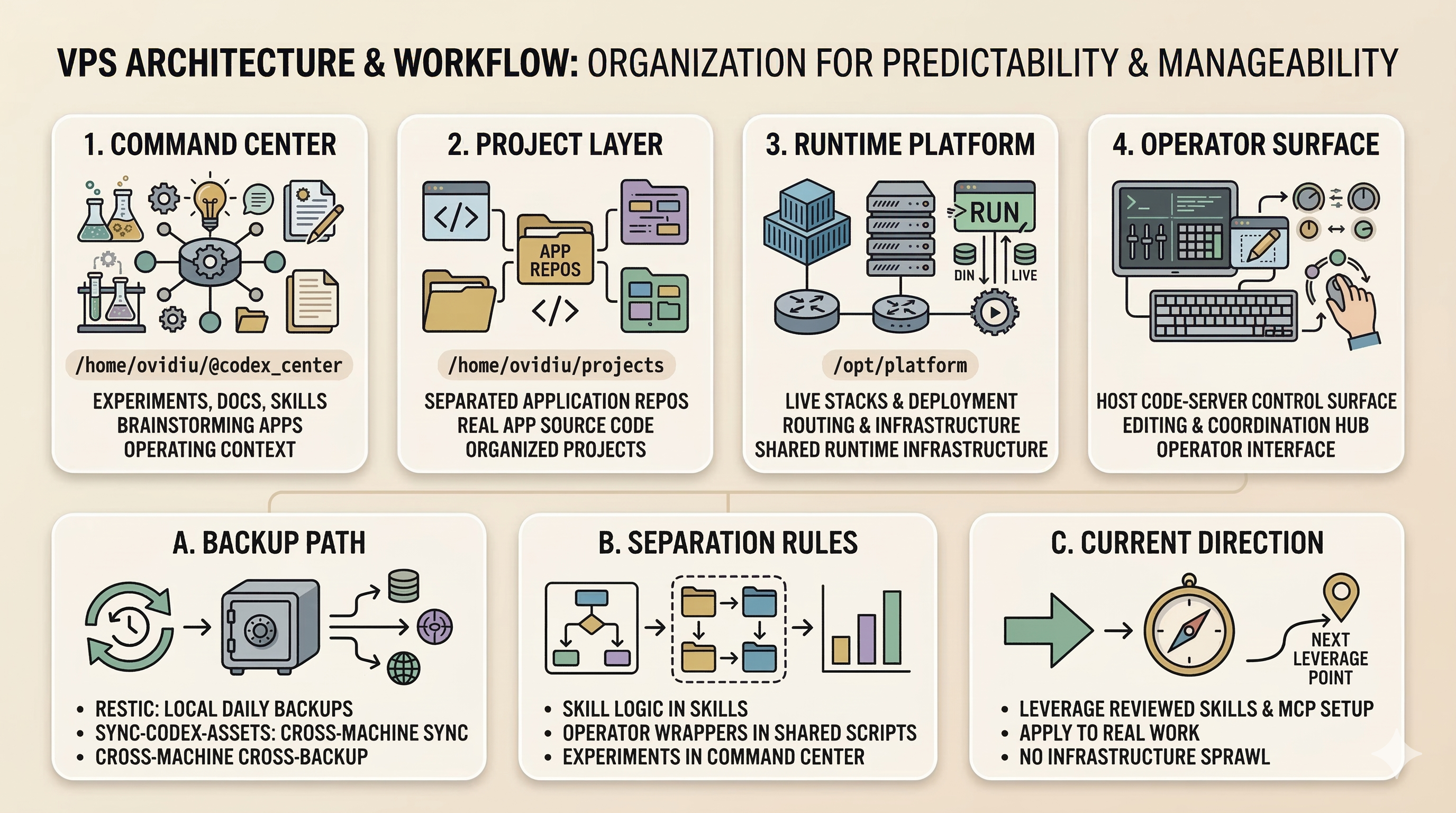

Generated infographic summarizing the VPS architecture and workflow, including the command center, project layer, runtime platform, operator surface, and the operating rules that keep the system manageable.
This generated infographic is the quick-read version of the topic: experiments and docs live in the command center, real repos stay separate, runtime stacks live under the platform layer, and the operator surface ties them together without collapsing everything into one folder or one workflow.
Internal SVG prototype infographic summarizing the VPS architecture and workflow: command center, project layer, runtime platform, operator surface, and the operating rules that keep the system manageable.
Internal SVG prototype kept on the page by default so the explainer retains its editable baseline alongside the generated PNG version.
Section

Operating model

This VPS uses a split model: /home/ovidiu/~devops-center is the command center for experiments, docs, skills, and brainstorming apps, while /home/ovidiu/projects holds real project repos and /opt/platform holds runtime stacks and shared platform routing.

  • Command center: /home/ovidiu/~devops-center
  • Real project repos: /home/ovidiu/projects
  • Runtime platform stacks: /opt/platform/apps
  • Runtime shared volumes: /opt/platform/volumes
Section

Public request flow

Public HTTPS traffic lands on Traefik, which owns ingress and routes requests to the right Docker app or host-backed service. Most public surfaces are reached through Traefik instead of exposing random host ports.

  • Traefik is the public reverse proxy
  • Public endpoints include ovidiutm.com, brainstorming, vscode, status-board, and vps-monitor
  • Host services should normally sit behind Traefik instead of being exposed directly
Section

Operator environment

The main operator workspace is host code-server. It is treated as a key service because it is the primary control surface for editing files, managing docs, and coordinating changes across projects and platform stacks.

  • code-server@ovidiu.service is active
  • Brainstorming and command-center work is usually edited from code-server
  • Live-impacting changes should verify service state and public routes after edits
Section

Current app landscape

The VPS currently exposes a mix of brainstorming apps and project-backed apps. The status board monitors public hosts and runtime health, while brainstorming acts as the public index for draft internal tools and explainers.

  • Status Board: 9 / 9 public surfaces healthy
  • Platform services tracked: Docker, Traefik, Code Server, Status Board
  • vps-monitor has its own hostname and project folder
  • Morning Briefing and other internal tools stay under brainstorming
Section

Reliability and backup path

Backups use local encrypted restic with a daily timer, while cross-machine backup/sync to Windows uses a dedicated sync-codex-assets script. That script now includes the full .codex tree and supports both interactive and flag-driven runs.

  • restic-backup.timer is active
  • Cross-machine backup includes .codex, ~devops-center, projects, and /opt/platform
  • Windows backup flow now tolerates live-changing SQLite WAL files
Section

Workflow rules that matter

The environment stays manageable because work is intentionally separated by purpose. New experiments start in ~devops-center, app source stays with the app, and secret-aware or VPS-level wrappers stay in the shared scripts directory instead of being scattered across skill folders.

  • Start new experiments under /home/ovidiu/~devops-center
  • Move real subdomain apps into /home/ovidiu/projects/<name>
  • Keep skill-specific scripts inside the skill folder
  • Keep operator or secret-aware wrappers in /home/ovidiu/~devops-center/scripts
Section

Current takeaway

This VPS is already organized as a small personal platform rather than a loose server. The next leverage point is not more infrastructure sprawl, but using the reviewed custom skills and MCP integrations on real work while keeping the separation between command-center, project, and runtime layers intact.

  • Use reviewed custom skills on live tasks
  • Add missing MCP secrets only when a task needs them
  • Keep public routes and source locations predictable
